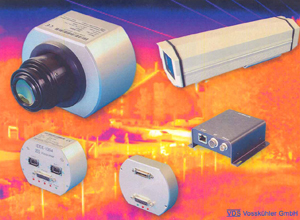

Infrared Camera
1
                                                           Features:
                                                                                     320 (H) x 240 (V) pixels
                                                                                     Uncooled microbolometer sensor
                                                                                     NETD: < 80 mK
                                                                                     Spectral response: 8 - 14 μm (LWIR)
                                                                                     Temperature range: +20°C to +200
°C @ F/1.0
                                                                                     35 μm x 35 μm pitch
                                                                                     Frame rate 40 Hz
                                                                                     Preprocessing functions including: Background subtraction, error pixel correction, shading                                                                                         correction, LUT
                                                                                     12 bit Camera Link or Gigabit Ethernet output


                                                           Technical Data:
                                                                                     Resolution: 320 (H) x 240 (V) Pixels
                                                                                     Uncooled microbolometer sensor
                                                                                     NETD: < 80 mK
                                                                                     Thermal sensitivity typical 80 mK @ F/1.0, 30
°C
                                                                                     Spectral response: 8 - 14 μm (LWIR)
                                                                                     Temperature range: 20
°C to 200 °C @ F/1.0
                                                                                     Temperature stabilized sensor
                                                                                     Sensor time-constant approx. 4 ms
                                                                                     Sensitive area of 11.2 mm x 8.4 mm
                                                                                     Pixel size: 35 x 35 μm
                                                                                     Frame rate: 40 Hz
                                                                                     12 bit Camera Link (Base) or Gigabit Ethernet (1000Base-T) output
                                                                                     Power supply: + 12V (SELV), max. 0.7 A
                                                                                     Ambient air temperature: 10° - 30
°C
                                                                                     CE standard
